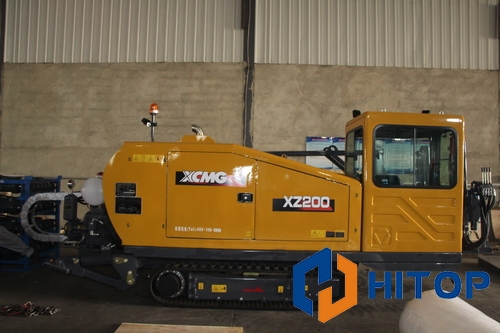

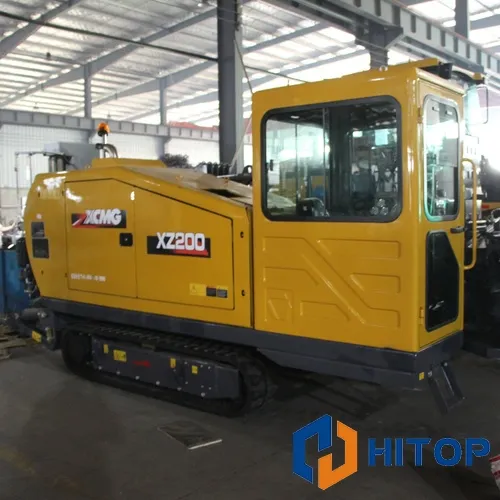

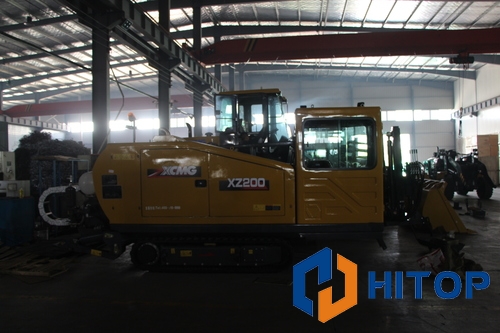

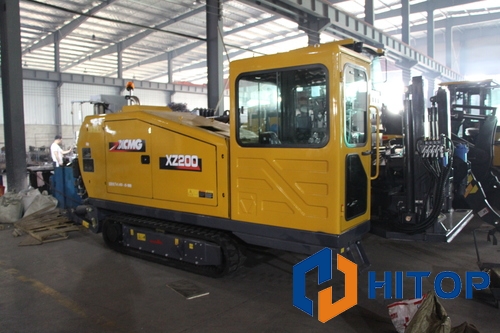

XCMG Horizontal Directional Drill XZ200
Model: XZ200
Engine Model: Cummins QSB5.9-C150
Rated Power: 112KW/150HP
Max. Thrust-Pull Force: 225KN/225KN
Pipe Diameter × Length: Φ 60 ×3,000 mm
Max. Back Reaming Diameter: Φ 600 mm
Send Inquiry
Engine Model: Cummins QSB5.9-C150
Rated Power: 112KW/150HP
Max. Thrust-Pull Force: 225KN/225KN
Pipe Diameter × Length: Φ 60 ×3,000 mm
Max. Back Reaming Diameter: Φ 600 mm
Description
Gallery
| XZ200 HORIZONTAL DIRECTIONAL DRILL/XZ200 HDD MACHINE | ||
| ITEM | PARAMETER | |
| Engine | Make | Cummins |
| Model | QSB5.9-C150 | |
| Rated Power | 112KW / 2200 R/Min | |
| Operation | Type | Rack and pinion |
| Max. Thrust /Pullback Force | 225/225 KN | |
| Max carriage thrust/pullback travel speed | 26M/Min | |
| Max. Spindle Torque | 6350N·M | |
| Max. Spindle Speed | 160 R/Min | |
| Type | Self-Propelled Steel Track | |
| Ground Travel Speed | 3.0 Km/h | |
| Drill Rod/ Drill pipe | Diameter ×Length | Φ60 mm×3000mm |
| Entry Angle | 10~20° | |
| Mud Pump | Max flow rate | 250L/Min |
| Max pressure | 8 | |
| Overall Weight | 8.5T | |
| Overall Dimension | 5900×2020×2400mm | |
