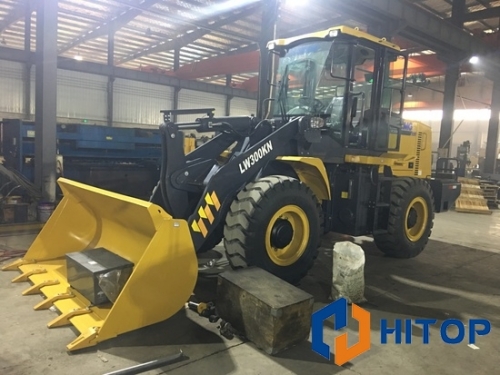

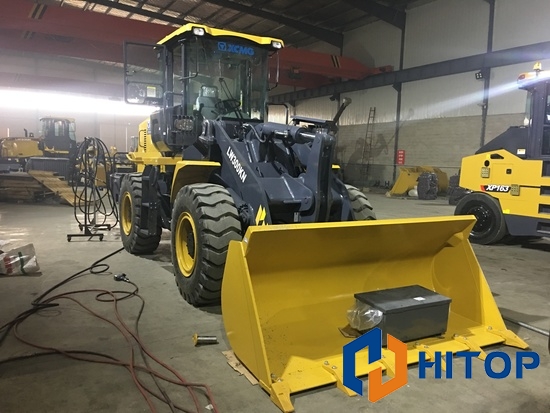

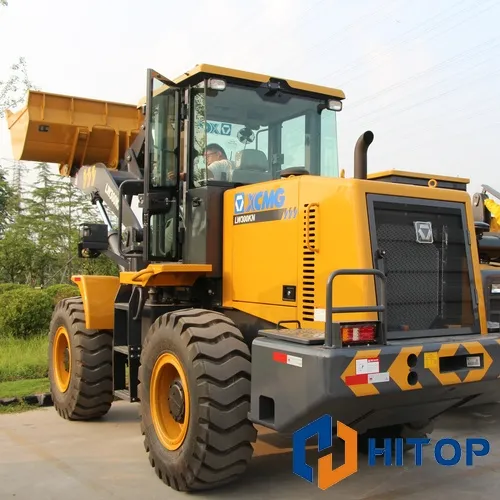

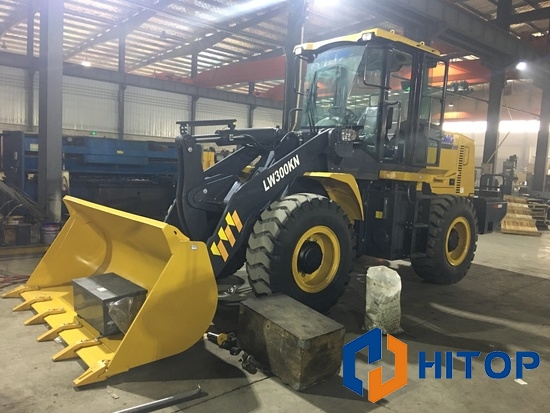

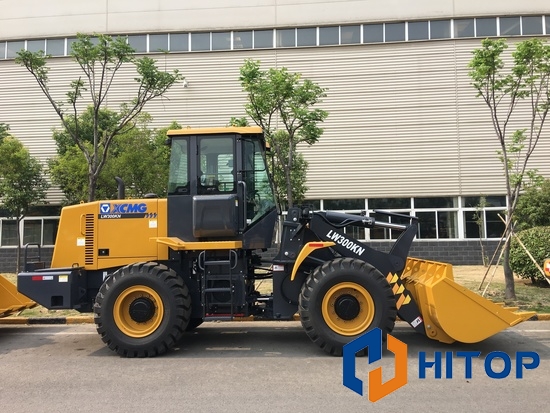

XCMG Wheel Loader LW300KN

Engine Model: WEICHAI DEUTZ WP6G125E22

Rated Power/Speed: 92KW/123HP

Max.Rated Lifting Capacity: 3,000KG

Standards Bucket Capacity: 1.8m³

Operating Weight: 11,500KG

Pilot Control(Y/N): OPTIONAL
Send Inquiry
Description Gallery
1. High energy-conservation, efficiency, reliability and comfort.

2. All load-carrying portions of the drive axle are solid and firm enough to ensure excellent overload resistance and meet the needs of diversified high strength and high load operations.

3. As the sole low speed engine energy-conservation product among the industry's 3t loaders, its leading the industrys energy-conservation trend.

. The full-view cab sufficiently takes in consideration the human-machine functions to realize high operation safety and comfort.

. Undertaking the concept of ground maintenance, all maintenance locations are scientifically arranged to ease the checking and maintenance.

ltem Specifications unit
Rated load 3,000 kg
Rated bucket capacity 1.8
Operation mass 11,500 kg
Dumping height(from ground to main blade plate) 2930 mm
Dumping distance(from the front wheel to main blade plate) 1010 mm
Maximum breakout force 130 KN
Maximum traction force 100 KN
lifting time of swing arm 5.6 s
Total cycling time 9.8 s
Minimum turning radius(outer edge of bucket) 6020 mm
Minimum turning radius(tire center) 5170 mm
Articulated angle 38 °
Gradeability 28 °
tire size 17.5-25-12PR
Overall demension of machine(L×W×H) 7250×2482×3290 mm
Engine model WEICHAI DEUTZ WP6G125E2
Rated power/rotate speed 92/2000 kW/r/min
Travel speed Gear I(F/R) 0~15/20 km/h
Gear II(F) 0~40 km/h
